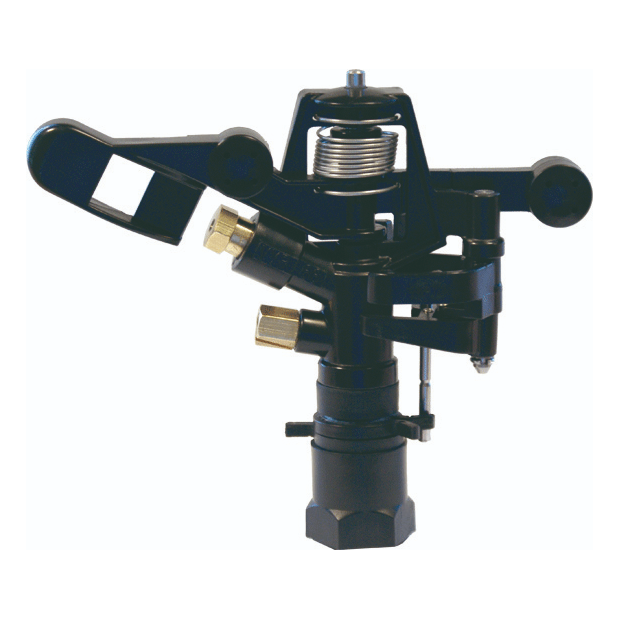

• Part circle impact sprinkler, medium flow.
• 3/4” male or female connection.
• Made of plastic and stainless steel.
• Arm with 2 steel weights inserted.
• High-resistance rotating joints.
• Nozzle angles of 30º and 11º.
• Part circle mechanical system using clips that are very easy and quick to adjust.
• Used in full coverage irrigation with medium flow to cover the side and corner areas.
• Special mechanical and hydraulic design for energy saving and an optimal coverage coefficient.
Technical specifications:
• Reach: 39-62 ft. (12-19 m).
• Flow: 2,7-15,10 GPM (800-3,270 l/h).
• Working pressure: 25-75 PSI (1,75 – 5 BAR).
• Area: Part or full circle.
• Nozzles: One main long reach nozzle and a secondary short reach nozzle.
• Trajectory angles: 30º and 11º.
• Maximum stream height: 13 ft. (4,0 m).
• Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
• Uniformity coefficient higher than 90% in areas of 49x59R, 59x59T, 66x59T ft.
Applications:
• Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.
