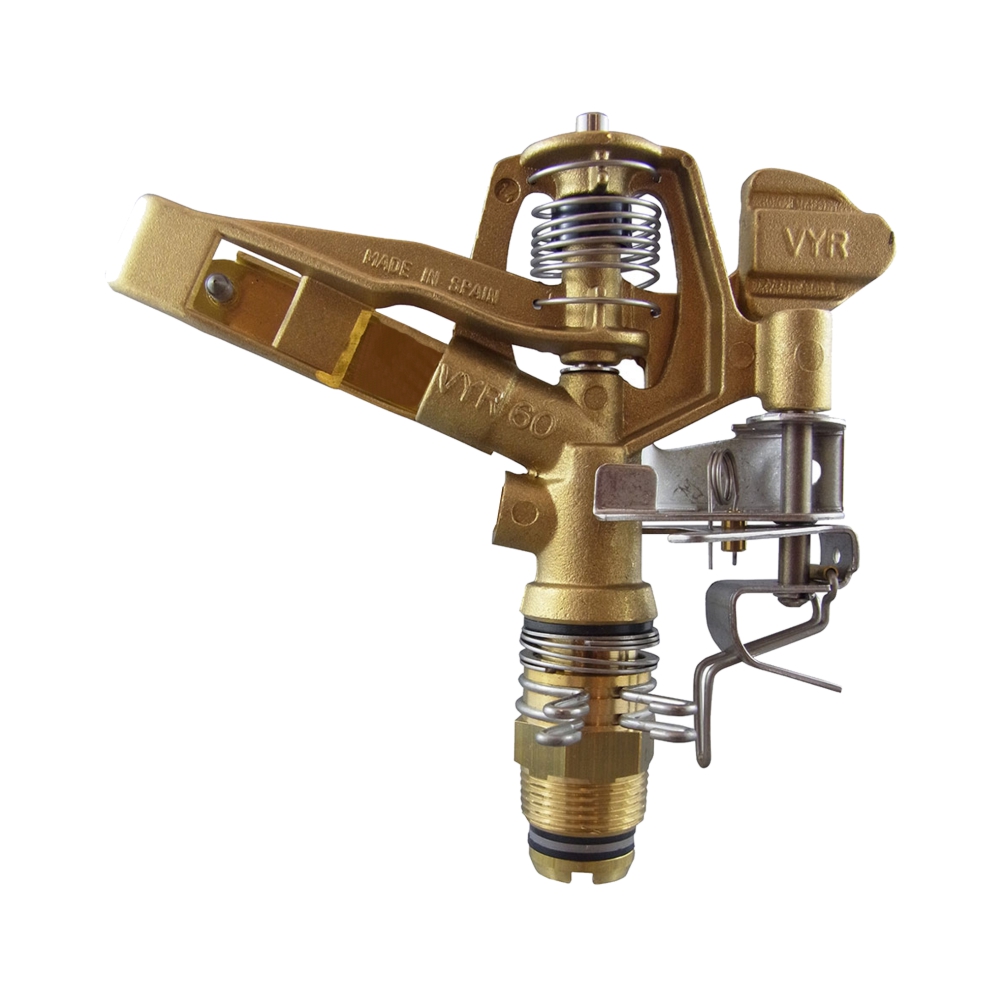

- Part circle impact sprinkler, medium flow.
- 3/4” male or female connection.
- Made of brass and stainless steel.
- High-resistance rotating joints.
- Nozzle angles of 24º and 12º
- Part circle mechanical system using clips that are very easy and quick to adjust.
- Used in full coverage irrigation with medium flow to cover the side and corner areas.
TECHNICAL SPECIFICATIONS:
- Reach: 12 – 19 m / 39-62 ft
- Flow: 800 – 3270 l/h / 210 – 860 GPH
- Working pressure: 1.75 – 5 BAR / 25 – 72 PSI
- Area: Part or full circle.
- Nozzles: One main long reach nozzle and a secondary short reach nozzle.
- Trajectory angles: 24º and 12º
- Maximum stream height: 3.8 m / 12 ft
- Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
- Uniformity coefficient higher than 90% in areas of 15x18R, 18x18T and 18x20T m / 60x60R, 50x60T, 60x60T ft.
