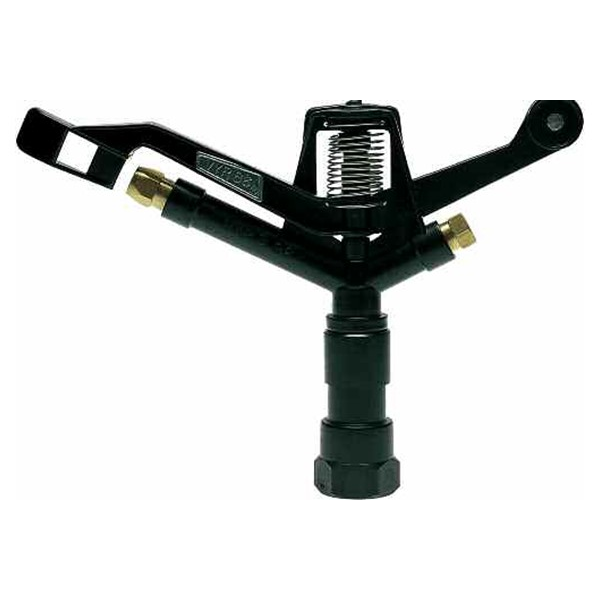

• Agricultural impact sprinkler with medium-high flow.
• 1“ female connection.
• Made of plastic and stainless steel.
• High-resistance rotating joints.
• Nozzle angles of 26º and 26º.
• Special design for long reach.
• Used in full coverage irrigation with medium-high flow.
Technical specifications:
• Range distance: 43-89 ft. (13,5- 27 m).
• Flow: 10-40 GPM (2300- 9000 l/h).
• Working pressure: 40-90 PSI (2,75 – 6 BAR).
• Area: Full circle.
• Nozzles: Two nozzles: one main nozzle and a secondary deflector nozzle.
• Trajectory angles: 26º and 26º.
• Maximum stream height: 16 ft. (5 m).
• Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
• Uniformity coefficient higher than 90% in areas of 65x65R, 72x72T, 72x79T ft.
Applications:
• Used in all types agricultural irrigation, generally with medium-high flow.
• Horticultural plantations, cereals, tubers, leguminous plants and fruit trees
