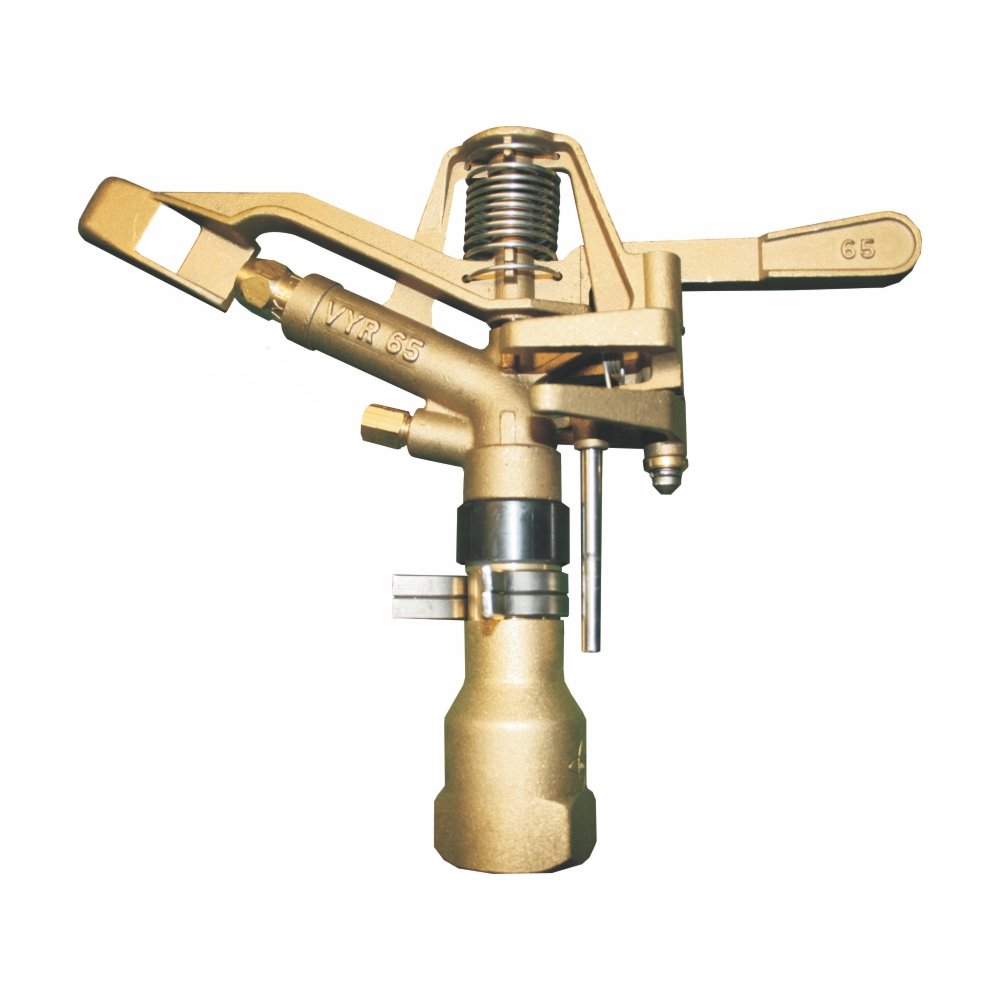

· Part circle agricultural impact sprinkler, medium-high flow.
· 1“ male or female connection.
· Made of brass and stainless steel.
· High-resistance rotating joints.
· Nozzle angles of 28º and 14º
· Part circle mechanical system using clips that are very easy and quick to adjust.
· Used in full coverage irrigation with medium-high flow to cover the side and corner areas.
· Special mechanical and hydraulic design for energy saving and an optimal coverage coefficient.
TECHNICAL SPECIFICATIONS:
· Reach: 16 – 24 m / 2,79 ft
· Flow: 2.240 – 7.840 l/h / 590 – 2.070 GPH
· Working pressure: 3.5 – 6 BAR / 50 – 87 PSI
· Area: Part or full circle.
· Nozzles: One main long reach nozzle and a secondary short reach nozzle.
· Trajectory angles: 28º and 14º
· Maximum stream height: 6 m / 19,7 ft
· Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
· Uniformity coefficient higher than 90% in areas of 24x24R, 25x25T and 25x26T m / 79x79R, 82x82T, 82x85T ft.
