General properties:

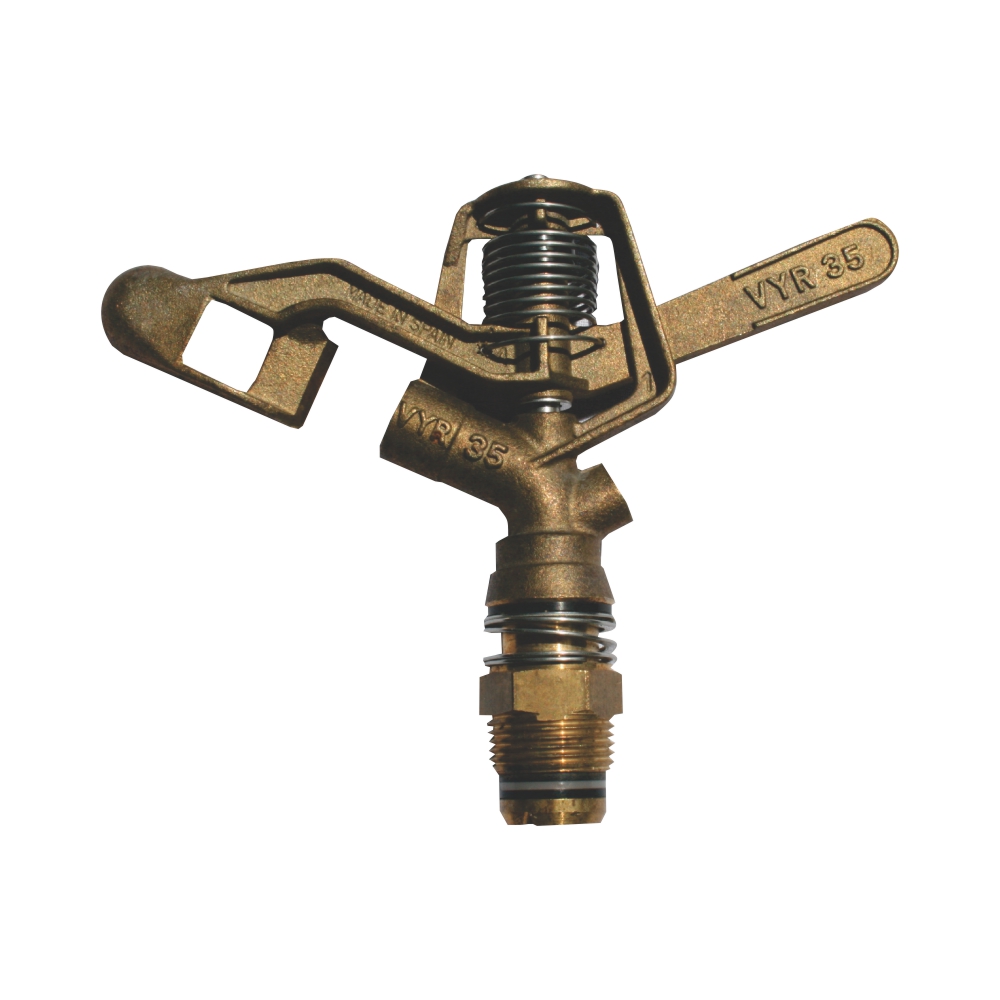

• Medium flow agricultural impact sprinkler.
• 3/4” male or female connection.
• Made of brass and stainless steel.
• High-resistance rotating joints.
• Nozzle angles of 26º and 26º.
• Designed for full coverage irrigation offering best compliance with spacing standards in the market.
• Leading sprinkler in the agricultural market.
Technical specifications:
• Range distance: 42-60 ft. (13-18 m).
• Flow: 2,7-15 GPM (660- 3270 l/h).
• Working pressure: 25-65 PSI (1,75- 4,5 BAR).
• Area: Full circle.
• Nozzles: Two nozzles: one main nozzle and a secondary deflector nozzle or plug.
• Trajectory angles: 26º and 26º.
• Maximum stream height: 14 ft. (4,2 m).
• Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
• Uniformity coefficient higher than 90% in areas of 60x60R, 50x60T, 60x60T ft
Applications:
• This model is compatible with almost any type of crop and with a wide range of pluviometric and spacing conditions, suitable for a large number of different crop types.
• Horticultural plantations, cereals, tubers, leguminous plants and fruit trees.
