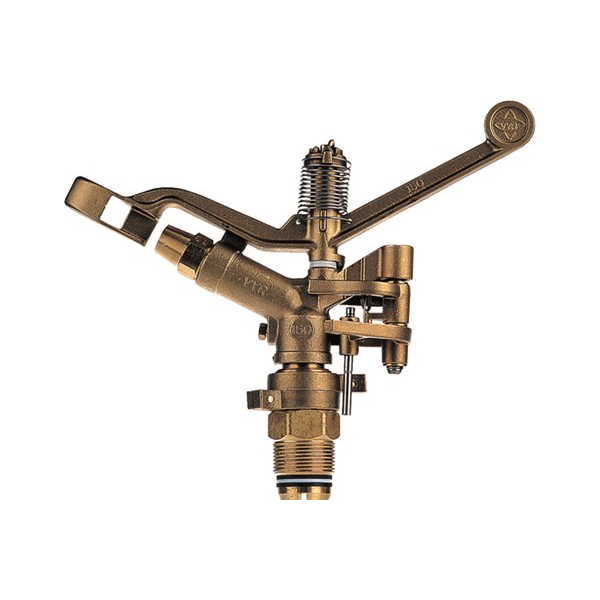

· Part circle agricultural impact sprinkler, high flow.
· 1 1/4“ male connection.
· Made of brass and stainless steel.
· High-resistance rotating joints.
· Nozzle angles of 27º and 4º
· Part circle mechanical system using clips that are very easy and quick to adjust.
· Used in full coverage irrigation with high flow to cover the side, corner and pivot point areas.
· Adjustable spring tension.
TECHNICAL SPECIFICATIONS:
· Reach: 25 – 37 m / 82 – 122 ft
· Flow: 6.200 – 28.000 l/h / 1.630 – 7.400 GPH
· Working pressure: 4 – 7 BAR / 58 – 101 PSI
· Area: Part or full circle.
· Nozzles: One main long reach nozzle and a secondary short reach nozzle.
· Trajectory angles: 27º and 4º
· Maximum stream height: 5.5 m / 18 ft
· Rotation time: Depending on the pressure and the nozzles, the rotation will be constant and continuous.
· Uniformity coefficient higher than 90% in areas of 37x37R, 37x37T and 37x39T m / 121x121R, 121x121T, 121x128T ft.
