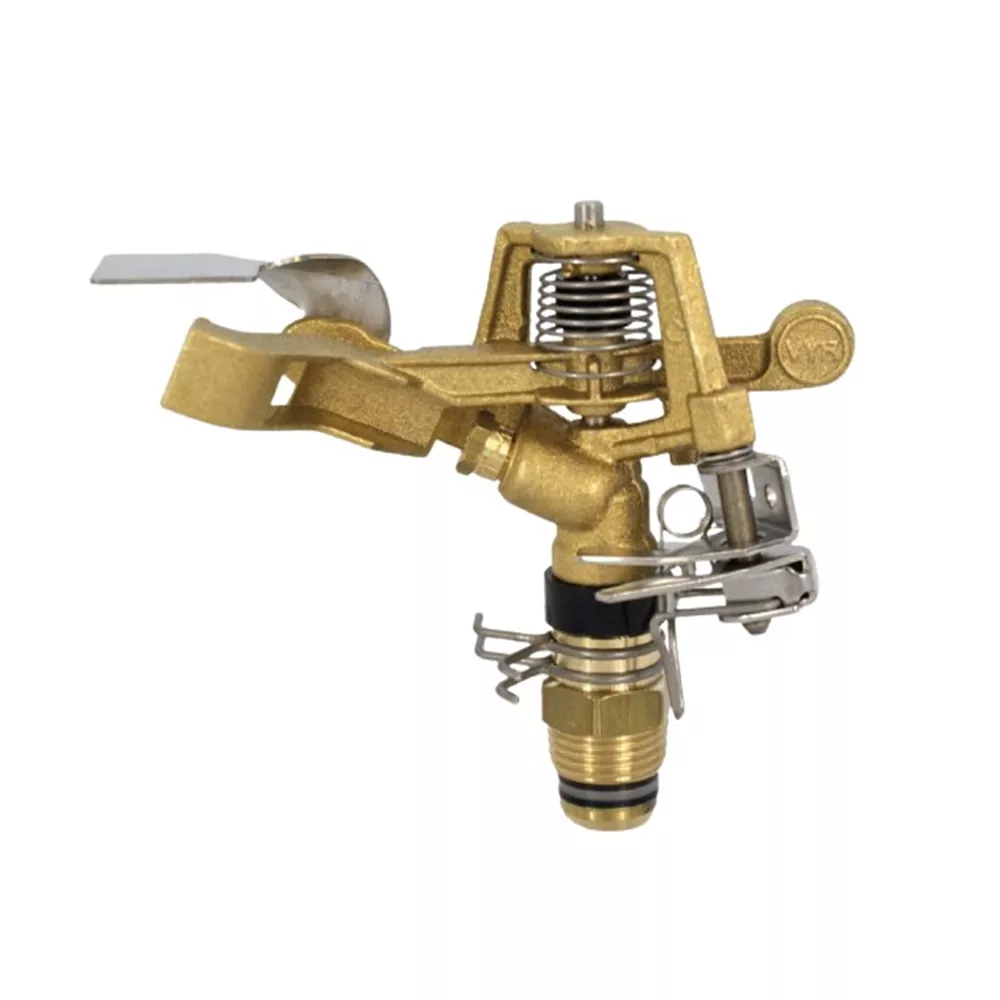

· Riser-mounted impact sprinkler for gardening, agriculture, flower growing and greenhouses.
· 1/2” male connection.
· Made of brass and stainless steel.
· High-resistance rotating joints.
· Arm with anti-splash design.
· Adjustable deflector plate.
· Irrigation area system controlled by rotating clips.
· Adjustable jet breaker diffuser pin.
TECHNICAL SPECIFICATIONS:
· Range distance: 9 – 14 m / 30 – 46 ft.
· Flow: 460 – 1180 L/H / 121 – 312 GPH.
· Working pressure: 1,5 – 4 BAR / 22 – 58 PSI.
· Area: Full or part circle.
· Nozzles: A multi-jet nozzle.
· Trajectory angles: 24º
· Maximum stream height: 2.6 m / 8,5 ft.
· Rotation time: Adjustable. Depending on the pressure and the nozzles, the rotation will be constant and continuous.
· Uniformity coefficient higher than 90% in areas of 11x11R, 12x12T and 12x13T (meters).
APPLICATIONS:
Public and private gardens.
Horticultural plantations, floriculture and fruit trees.
